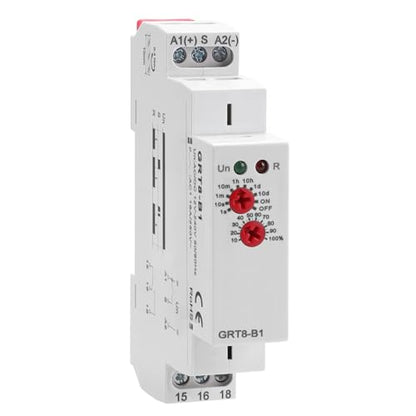

Delay Off Time Relay 16A Adjustable Smart Relay GRT8-B1 AC/DC 12V-240V - size: GRT8-B1 AC/DC 12V-240V

Delay Off Time Relay 16A Adjustable Smart Relay GRT8-B1 AC/DC 12V-240V - size: GRT8-B1 AC/DC 12V-240V

$44.80 USD
$44.80 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • Function and application:12v timer relay, preset the machine to work for a predetermined time and then turn off the time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide working voltage of ac dc 12-240v (50-60Hz), output contact: 1SPDT (1NO1NC), rated current is 16A. This ac dc 12-240V timer delay relay can be used in industrial equipment, lighting, manufacturing industries to accurately control the delay time of changing lighting, heating, motors, machines, etc

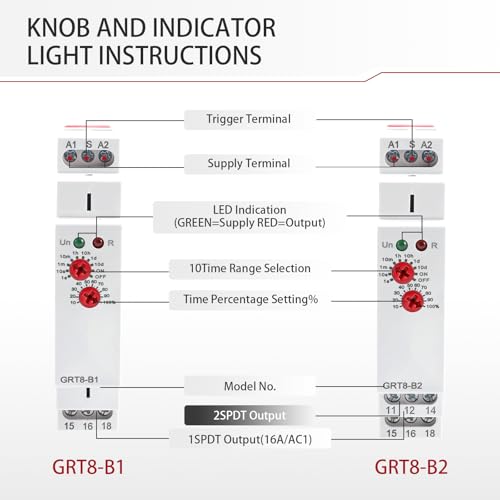

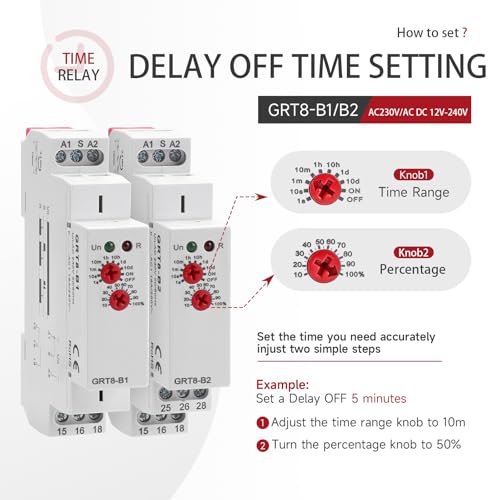

  • INDICATOR BUTTON: The working status of the delay relay is indicated by the LED indicator: the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED indicator is off (indicating the stop of work). If you want to set the device to shut down after working for 5 days, please adjust the first knob of this delay relay to 10d and the second knob to 50%. Then the terminal will disconnect the circuit and stop working after working for 5 days. Please check the instructions and videos before operation, which can help you better use the relay
  • Model of GRT8 Time Relay: 1. GRT8-A: Delay ON time relay; GRT8-B: Delay Off time relay; GRT8-S：Asymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON），and function E as shown in the figure, F,G,H,I,J

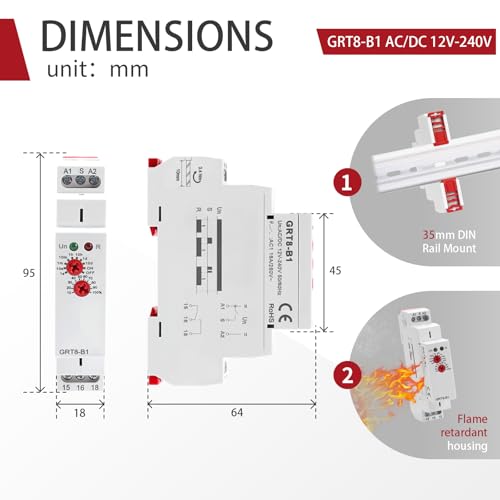

  • Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.63 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
  • WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time

Overview

  • Connector Type: Screw
  • Contact Material: Copper
  • Contact Type: Normally Open
  • Current Rating: 16 A
  • Mounting Type: DIN Rail Mount
