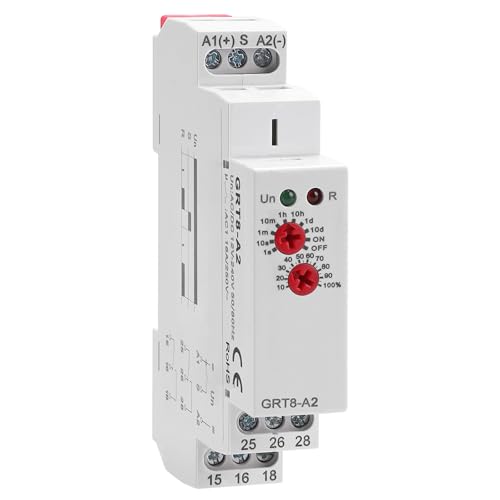

Delay On Time Relay 16A GRT8 A2 Timer Relay Voltage Range AC DC 12V to 240V - size: GRT8-A2 AC/DC 12V-240V

Delay On Time Relay 16A GRT8 A2 Timer Relay Voltage Range AC DC 12V to 240V - size: GRT8-A2 AC/DC 12V-240V

$46.46 USD
$46.46 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • FUNCTION& APPLICATION: 12v timer relay, preset machine start time. It has a wide delay setting range of 0.1 seconds to 10 days, a wide operating voltage of AC/DC 12-240V (50-60Hz), and a rated current of 16A. Output contact: 2SPDT (2NO2NC). This 12V timer delay on relay can be used in industrial equipment, lighting, manufacturing industries to precisely control the delay time for changing lighting, heating, motors, machines, etc

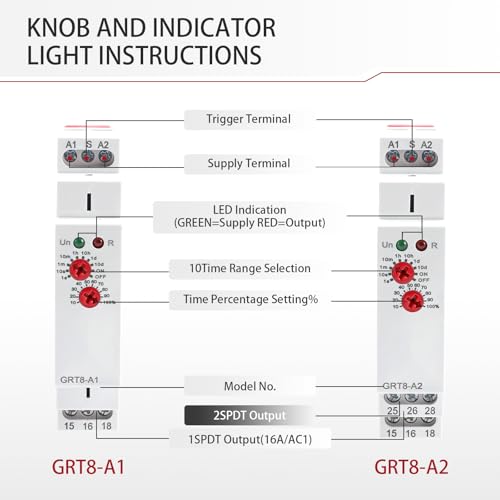

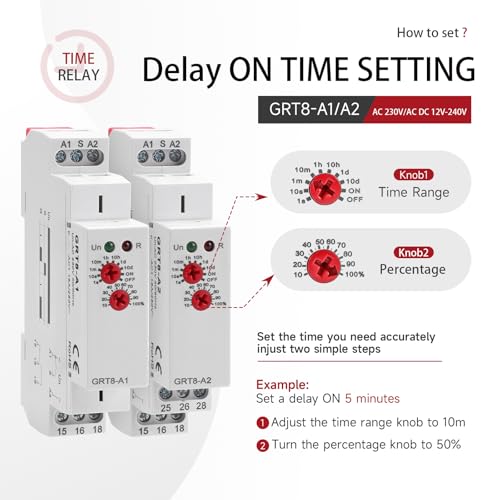

  • INDICATOR BUTTON: The working status of grt8 a2 ac/dc 12v-240v delay on time relay is indicated by the LED indicator light: the green LED indicator is always on (power on), the green LED indicator is off (power abnormality); the red LED indicator flashes (indicating the start of work), when the relay delay function is working, the red LED indicator is always on, and the red LED indicator is off (indicating the stop of work).If you want to set a 6-minute delay, adjust the first knob of this delay on time relay to 10m and turn the second knob to 60%, then the terminal will start work in 6 minutes. Please check the instructions and videos before operation, which can help you better use relay

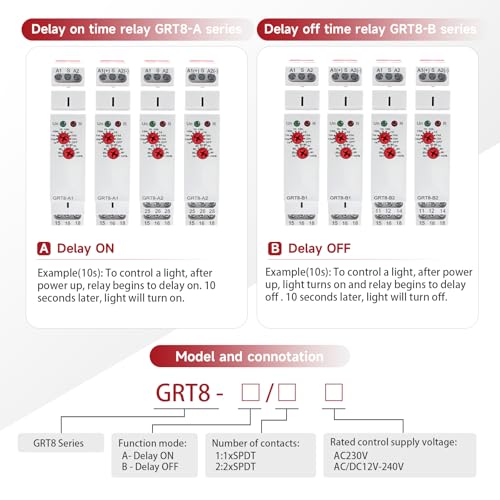

  • Model of GRT8 Time Relay: 1. GRT8-A: Delay ON time relay; GRT8-B: Delay Off time relay; GRT8-S：Asymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON），and function E as shown in the figure, F,G,H,I,J

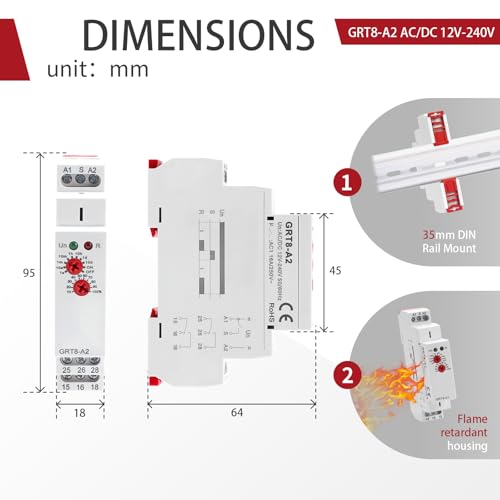

  • Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 3.35 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
  • WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time

Overview

  • Connector Type: Screw
  • Contact Material: Copper
  • Contact Type: Normally Open
  • Current Rating: 16 A
  • Mounting Type: DIN Rail Mount
