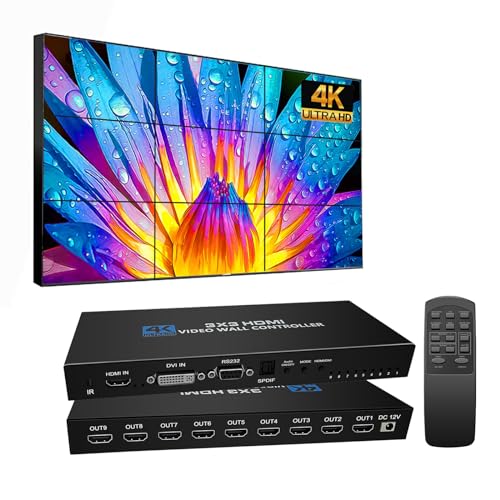

Video Wall Controller 3x3 HDMI Video Image Processor, Support 3840x2160/30HZ HDMI Input & DVI Input, 9-Screen Splicing TV Wall Controller, Support 180 Degree Rotation 3x3 3x2 2x2 3x1 1x4 2x3 4x2 2x4

About this item

• ✅【9 LED TVS Large Screen Splicing】This 4K video wall controller 3x3 supports 1 HDMI input,1DVI input and 9 HDMI outputs. The main function is to divide a complete HDMI high-definition image signal into 9 blocks and assign them to 9 video display units, such as rear projection units, LCD TVs, etc. Complete a large dynamic image screen composed of 9 HDMI high-definition video display units.

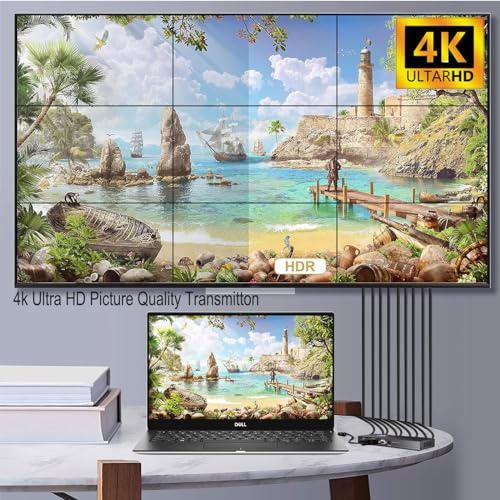

• ✅【4K Resolution】3x3 LED tv wall controller Each channel HDMI output supports 1920*1080, 1280x800, 1280x700, 1024x768, 1366x768, 1280x1024. Input compliant with HDCP 1.4 and HDMI 1.4, HDMI & DVI input can support resolution can up to 4K@30Hz, including 3840x2160P @24/30Hz, 1920x1080P@25/ 30/ 50/ 60Hz(Note:(DVI not support 4k, some input of TV box, Fire sticker may reach 4K/6Ohz, may can't be read )

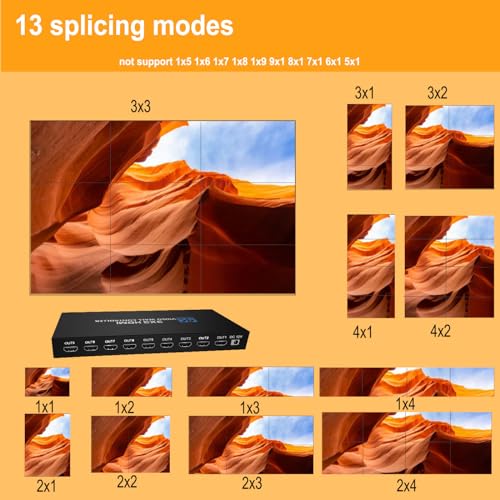

• ✅【13 Modes Splicing 】 AOGETYO tv wall controller support 3x3, 1x2, 1x3, 1x4, 2x2, 2x3, 2x4, 2x1, 3x1, 4x1, 3x2, 4x2 display modes and 1x1 HDMI splitter mode. Each mode has hotkey control on remote and button select.Very easy to Control.Vertical splicing function:choose pc as input and rotate the desktop portrait, you can set portrait modes 1x2 1x3 1x4, but need to select modes 2X1 3X1 4X1 when you choose the portrait modes you need.

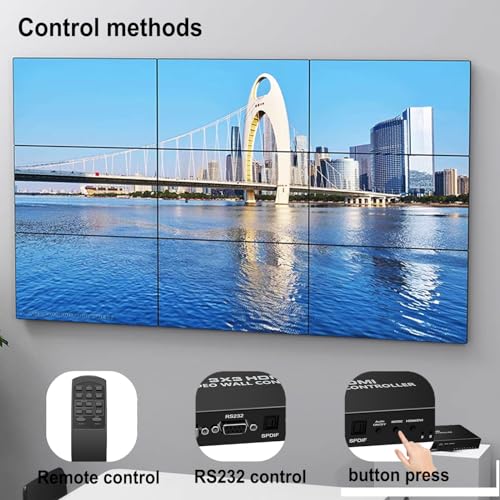

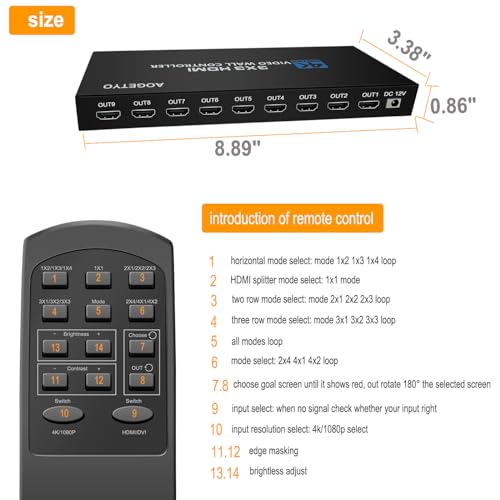

• ✅【Control Methods& memory function】 The 3x3 9 channel Video Wall Controller support IR remote Contropress control and RS232 control,and there are commonly used modes on the remote control for direct remote control. This video wall controller can remember last time setting when you plug in next time.

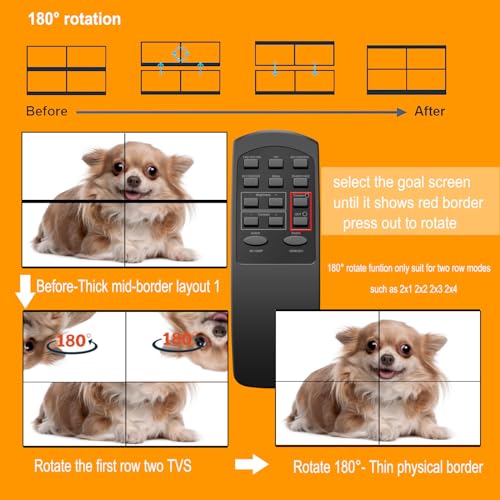

• ✅【180°Screen Rotation & Edge Mask】 With the 180 degree rotation function, you can flip the image of first row TVS to 180 degree, which can adjust the screens in an orientation with the thinnest edges, reduce the thick middle border. And the edge mask function can correct and align the bezels and image edges, making the multiple screens more comfortable.

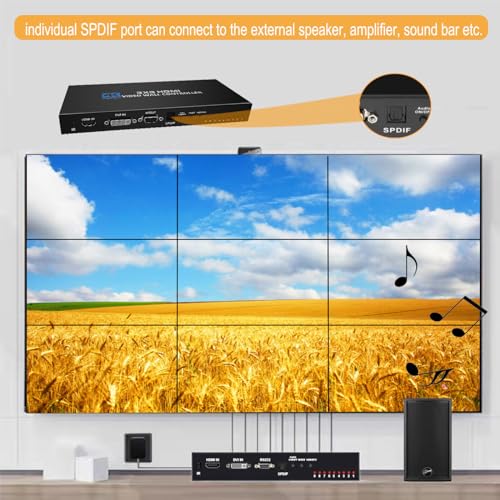

• ✅【spdif Audio Port】 AOGETYO TV splicing wall has an individual spdif stereo audio port which can connect to the external speaker, amplifier, sound bar etc (Note: if no connect with out audio, it will also has invoice from your HDMI output) Please set the resolution of all screens to 1080p to ensure work well.

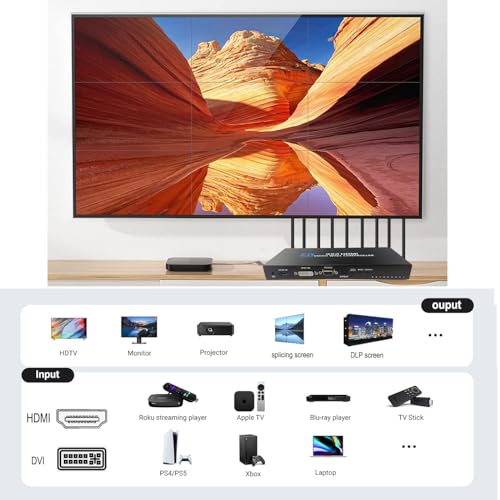

• ✅【Plug and Play】 Smart chip,With memory function, every time turn on, this video wall controller keep the Settings of the last time shut down,Plug & Play design, No driver needed.Easy operation，widely support all kinds of HDMI DVI input such as (DVD, TV Box, Xbox, PS4, Computer etc.) and HDMI output (TVS, monitor, splicing screen, projector etc.)(Note⚠️: If use splicing screen, need to reset the splicing screen to factory default first)
• ✅【Package Include】2x2 HDMI DVI video wall controller X1+Remote control X1(AAA battery no include)+USB power cable X1+USB power adapter X1
• ✅【12 month warranty】Your satisfaction is our top concern. You will get 12 months warranty for this video wall controller, and lifetime it-technologe support

Overview

• Color: black
• Connector Type: HDMI
• Brand: AOGETYO
• Compatible Devices: Input support HDMI & DVI Computer, laptop, TV box, game player ect., Output support TV, monitor, DLP screens, spling screens, projectorInput support HDMI & DVI Computer, laptop, TV box, game player ect., Output support TV, monitor, DLP screens, spling screens, projector Input support HDMI & DVI Computer, laptop, TV box, game player ect., Output support TV, monitor, DLP screens, spling screens, projectorInput support HDMI & DVI Computer, laptop, TV box, ga… See more
• Cable Type: DVI, HDMI
